2 Mic and Line Inputs Dante Interface

The DB0202 is a high-quality Dante interface featuring two mic/line inputs, designed to seamlessly convert two Dante channels to analog audio outputs and two analog audio inputs to the Dante network.

To set it up, just connect the RJ45 port to an Ethernet switch using a Cat5 cable, then use Dante Controller to route low-latency signals to and from other devices on the same Dante network.

This device is ideal for:

• Expanding I/O in Dante systems with analog equipment.

• Integrating legacy gear (such as analog mixers and amplifiers).

• Portable setups that need a compact, network-based audio solution.

It also works perfectly with our Dante DSP processors, Dante-enabled microphones, and Dante speakers for a complete networked audio setup..

Main Features:

• Dante Interface – Supports two inputs and two outputs for seamless digital audio networking.

• Dual-Channel Audio Conversion – Converts standard MIC or LINE analog audio signals to Dante network streams.

• Flexible Input Configuration – Each input channel can be independently set to MIC or LINE mode.

• Adjustable Gain Control – Individual gain adjustment for both input and output channels.

• 48V Phantom Power – Provides dedicated phantom power for each condenser microphone input.

• Versatile Input Compatibility – Accepts both balanced and unbalanced audio signals.

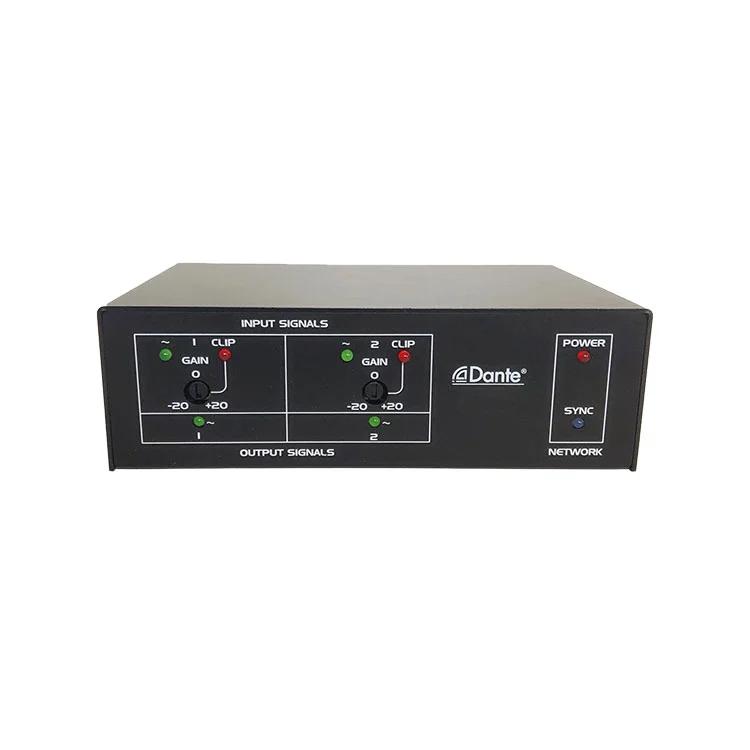

• Visual Monitoring – Front-panel LED indicators for input signal/clip and output signal levels.

• Balanced Line Outputs – Delivers two balanced analog line-level outputs from the Dante network.

• High-Resolution Audio – 24-bit A/D and D/A conversion for superior sound quality.

• Status Indicators – LEDs display power and network synchronization status.

• Power Options – Operates via an external 24VDC power supply or PoE-enabled network switch.

Product Specification

Product Connection

1. Line Volume: Gain control for output level.

2. Euro Terminal input: Receive the audio signal to Dante network.

3. RJ-45 port: Using Cat5 cable to connect to Dante network.

Note: The Ethernet switch needs to have PoE power supply.

4. SYNC LED: Indicates the status of Dante network.

Product Application

This Dante-enabled audio interface provides two configurable mic/line inputs with high-quality analog-to-digital conversion, It is suitable for:

1. Live Sound & Broadcast – Easily integrate microphones or line-level sources into a Dante network for live mixing, streaming, or recording.

2. Corporate AV & Conferencing – Connect microphones (with optional 48V phantom power) or audio sources for seamless Dante-based conferencing systems.

3. Recording & Studio Workflows – Capture high-resolution (24-bit) audio from mics or instruments and transmit over a Dante network for multitrack recording.

4. Installed Sound Systems – Distribute audio signals across a facility with low-latency, synchronized Dante networking.

5. Portable & Event Production – Compact and flexible for on-the-go setups, supporting both balanced and unbalanced inputs.

Combined with our other Dante products, Such as Dante microphone, Dante DSP, Dante speaker, you will get a perfect audio system
