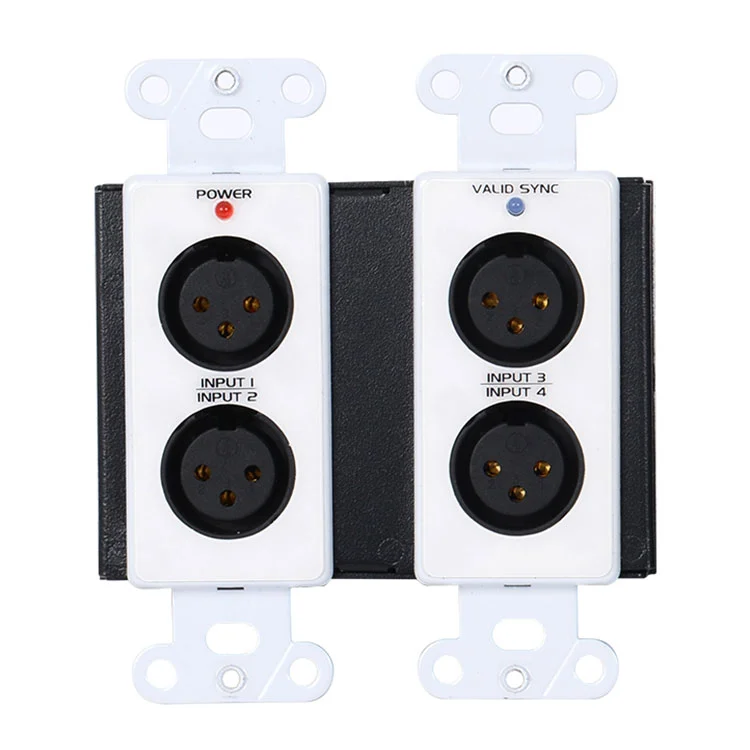

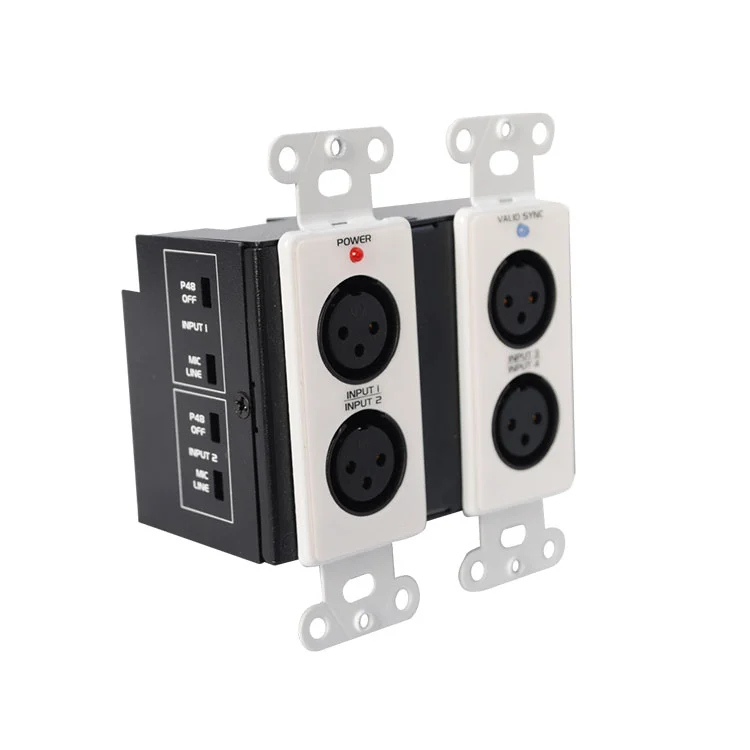

4CH Dante Audio Interface

The DWP42L is a versatile 4-in/2-out Dante network audio interface that converts between analog and digital audio with exceptional performance. Featuring four analog inputs (switchable between mic and line levels with adjustable gain) and two Dante-to-analog outputs, this compact unit installs easily in standard US double-gang back boxes. Simply connect via Ethernet using Cat5 cable and manage audio routing through Dante Controller software for ultra-low latency performance. Our complete Dante ecosystem includes DSP processors, network microphones, speakers, and additional interface solutions for comprehensive audio networking.

Main Features: The DWP42L features four XLR inputs with selectable mic/line modes, each offering adjustable gain (-20dB to +20dB) and switchable 48V phantom power for condenser microphones. It converts analog signals to Dante network audio with 24-bit high-resolution conversion, ensuring low-noise, high-fidelity performance. The unit also provides two Dante-to-analog outputs (balanced/unbalanced) on the rear panel. With PoE or 24V DC power options, front-panel status LEDs, and premium microphone preamps, it delivers reliable, broadcast-quality audio for professional installations.

FAQ:

Q:Are you the manufacturer?

A:Yes. We are the manufacturer based in Shenzhen.

Q:Can you provide OEM or ODM solution?

A:Yes, We can provide OEM or ODM Solution depends on client requirements.

Q: Have your products passed any certification?

A:Yes, we have CE, ROHS certificates.

Q: What Dante products can you provide?

A:We can provide a series Dante solution, such as Dante DSP, Dante audio Interface, Dante IO, Dante microphone, Dante speaker…

Product Specification

Product Operation

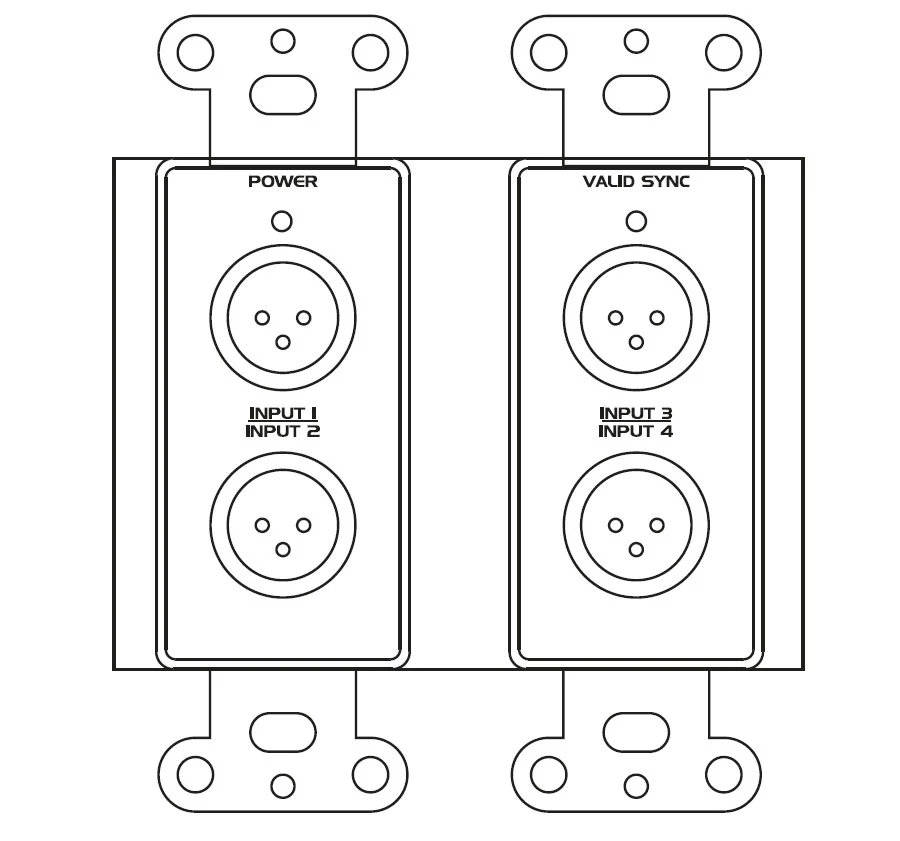

1. XLR inputs, accept MIC or Line audio signal.

2. Power LED indicator.

3. SYNC LED indicates the status of Dante network.

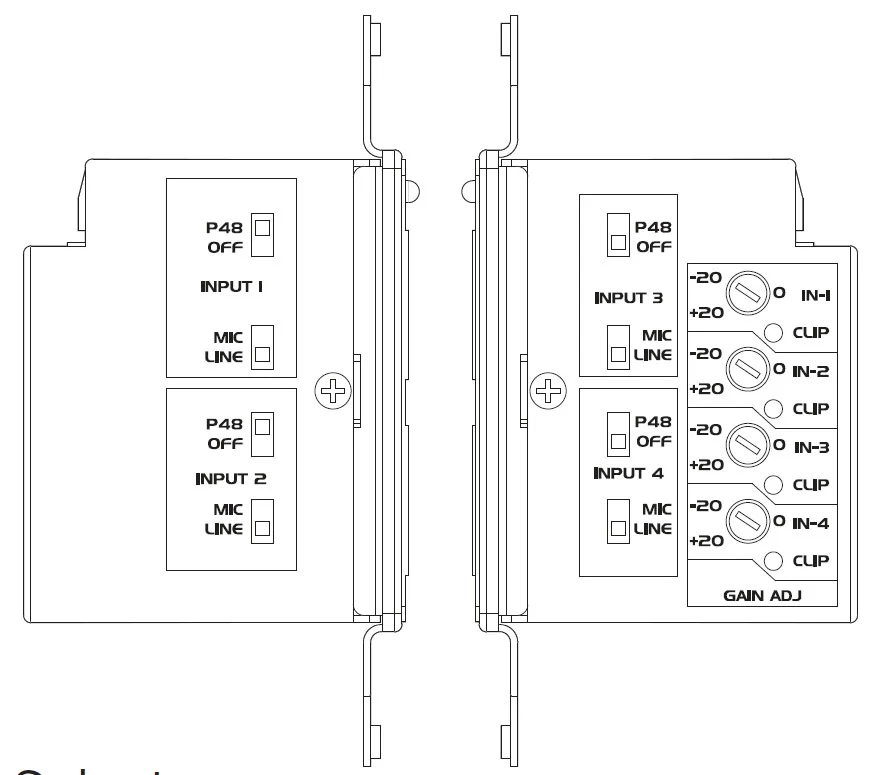

4. XLR Input Selector

Line: Accepts Balanced or Unbalanced Line source.

MIC: Accepts the signal of Dynamic or Condenser microphone.

P48V: Provides 48V Phantom power when connecting Condenser microphone.

5. Input Gain Controls: Adjust the Gain level of input signal on each input channel.

6. Signal CLIP LED on each input channel

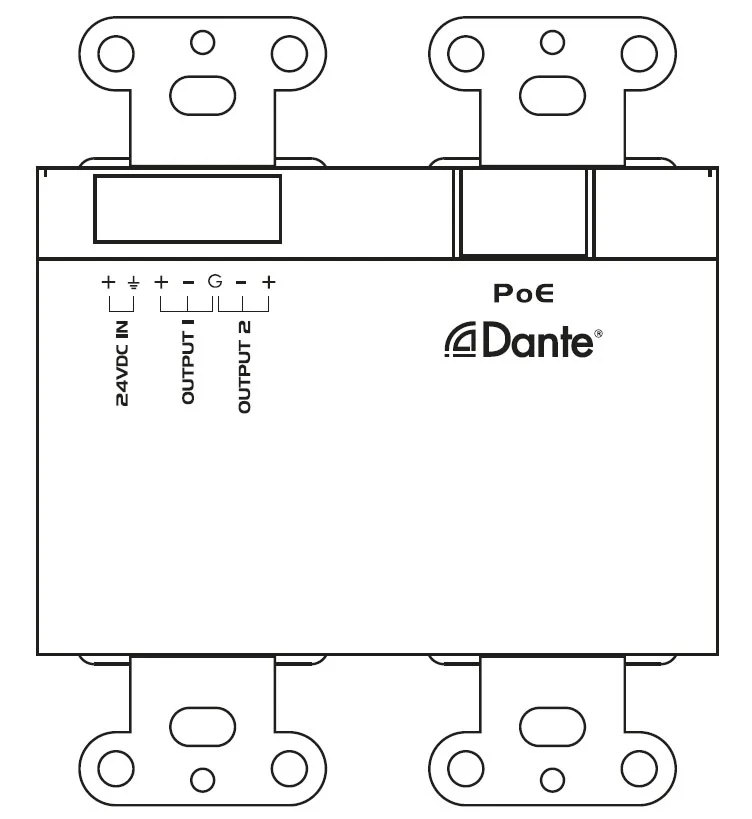

7. Euro Terminal Outputs: Converts two Dante channels to analogue Line outputs.

8. RJ45 port: Using Cat5 cable to connect to Dante network.

Note: When using PoE enabled network switch, DWP42L could be powered and operation from PoE.

9. Power: Connect DC 24V to 2P terminal block or DC input jack.

Note: If DC 24V and PoE are both present to DWP42L the unit will operate from DC 24V. And when DC 24V removed, the power will switch over to PoE power automatically.

Product Application

The Dante Interface (4 x Mic/Line Inputs, 2 x Line Outputs) is a versatile audio networking solution designed for seamless integration in professional audio setups. It enables bidirectional conversion between analog and Dante digital audio, Pls refer to below

1. Live Sound & Event Production

• Connect microphones, instruments, or line-level sources (e.g., mixers, playback devices) to a Dante network for low-latency distribution across multiple stages or zones.

• Send processed audio from a Dante-enabled mixer to analog amplifiers, monitors, or recording devices.

2. Conference & AV Systems

• Integrate analog microphones (e.g., podium mics, panel mics) into a Dante-based conferencing system for flexible routing and processing.

• Output Dante audio feeds to analog speakers or legacy amplifiers in meeting rooms, auditoriums, or lecture halls.

3. Broadcast & Recording Studios

• Digitize analog sources (mics, instruments, outboard gear) and transmit them over Dante for recording, streaming, or broadcast.

• Send Dante feeds (e.g., DAW outputs, intercom signals) to analog monitors, headphones, or processing equipment.

4. House of Worship & Performance Venues

• Capture choir mics, instruments, or spoken word and distribute them via Dante to FOH mixers, recording systems, or live streams.

• Route Dante playback tracks or announcements to analog zone speakers or delay lines.

5. Installed Sound & Hospitality

• Connect background music (BGM) systems, paging mics, or analog sources to a Dante network for centralized control.

• Output networked audio (e.g., program feeds, emergency alerts) to analog amplifiers in hotels, restaurants, or retail spaces.

What’s the advantage for DWP44L Dante Interface?

Plug-and-play Dante integration – No additional drivers required.

Ultra-low latency – Ideal for real-time applications.

Scalable & flexible routing – Manage audio via Dante Controller.

Compact & rack-mountable – Fits standard US double-gang back boxes.
