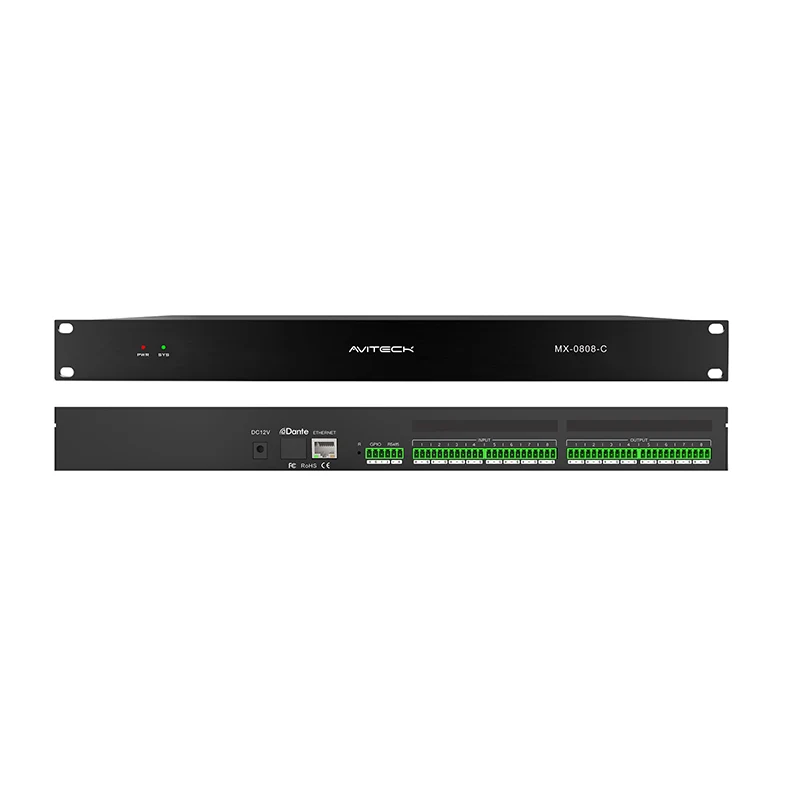

8 Channel Economy Digital Audio Matrix

8 Channel Economy Digital Audio Matrix, you can also simply call it by our FHBAVTEC model: MX-0808-C. When designing and producing this product, we applied advanced DSP technology, integrating a variety of innovative functions including automatic mixing and automatic feedback cancellation (AFC) into one, performing multi-functional audio processing and control, and preparing for different application scenarios.

Product Features:

1. 8 Channel Economy Digital Audio Matrix has many different applications, commonly used in conference rooms, campuses, cultural performances, concerts, etc. You can contact us for specific operating instructions or customization according to your needs.

2. FHBAVTEC will provide you with PC software.

3. The system has a built-in lock screen function to avoid misoperation.

4. In terms of function, 8 Channel Economy Digital Audio Matrix can give you a comprehensive user experience, mainly with DSP audio processing, built-in automatic mixer, feedback elimination (AFC) function, etc. The product is designed and produced with our advanced technology, which can achieve full-function matrix mixing, built-in automatic camera tracking function, and supports scene presets. It is convenient and fast to use. In case of special circumstances, we have set up automatic power-off memory protection function in terms of safety.

5. Each channel input: preamplifier, signal generator, expander, compressor, 5-level parametric equalizer.

6. Each channel output: 31-band graphic equalizer, delay, crossover, limiter.

7. The product uses a 1U all-aluminum chassis.

Product Parameters:

Software Experience of MX-0808-C:

In conjunction with the 8 Channel Economy Digital Audio Matrix, we have designed a PC version of the control software that can help you monitor and operate the digital audio processor. In actual use, you can edit and store scenes according to the acoustic characteristics of different functions. Commonly used modes include conference mode, art performance mode, concert mode, etc. A lock screen function is set in the system to avoid problems caused by misoperation, which is safer and more convenient.

Audio Processing Core Algorithm:

To achieve perfect sound quality, we first need an efficient and comprehensive algorithm. This is the result of the experience and wisdom of our engineers, making the built-in core algorithm the soul of the processor.

AUTOMIXER

8 Channel Economy Digital Audio Matrix can improve the clarity of speech, and the effects of feedback, reverberation and comb filtering are significantly reduced. Choose the audio equipment designed and produced by us to help you achieve automatic adjustment, and also simplify the settings. It is plug-and-play, which is more convenient and faster than many similar devices.

The 8 Channel Economy Digital Audio Matrix's adaptive noise threshold allows each input channel to distinguish between continuous background noise and changing sounds, constantly adjust the channel, and activate the threshold, ultimately achieving the goal of activating the channel only when the voice volume is higher than the background noise. It locks the last microphone until the next microphone is activated to ensure the presence of background environmental sound. If the last microphone is not locked, when there is a long pause in the conversation, all microphones will be turned off, just like the audio signal is lost.

Ultimately, what you can feel from this product is that it can accurately control the priority of each microphone and lock the key speakers.

Automatic feedback elimination (AFC)

The main features of the AFC function of the 8 Channel Economy Digital Audio Matrix are multi-point filtering and multi-subband frequency shifting, which maintains the harmonic nature of the original fundamental tone period without generating sound distortion. It can acoustically model the room feedback path and adaptively eliminate acoustic feedback.

It can quickly track the changes in the feedback path and greatly enhance the ability to suppress noise. The microphone transmission gain can be increased by 6-18db, which is a relatively large improvement, especially suitable for various large, medium and small conference rooms.
