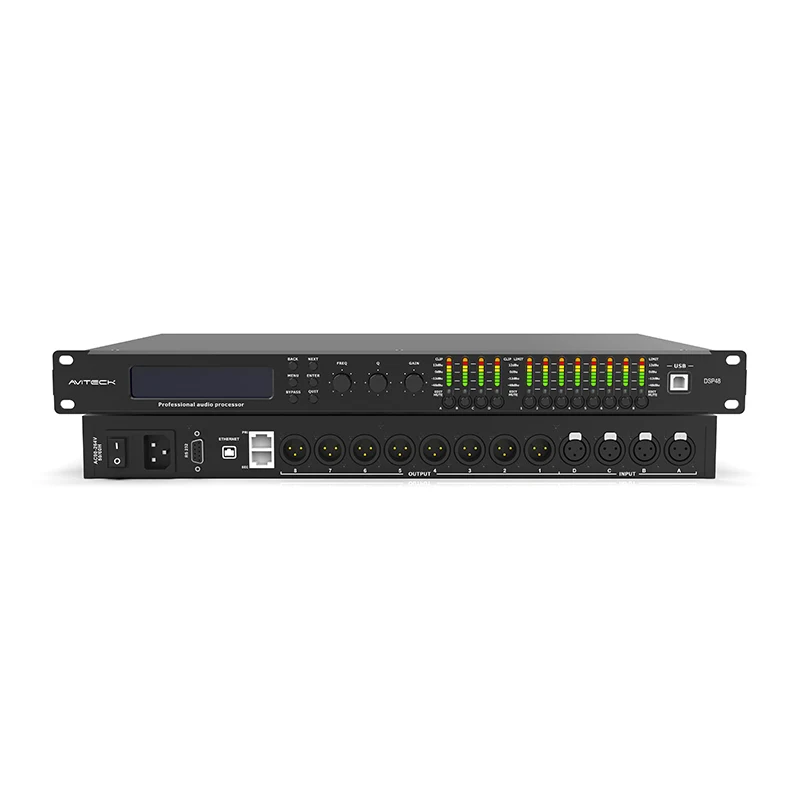

96K 4in 8out Speaker Management Processor

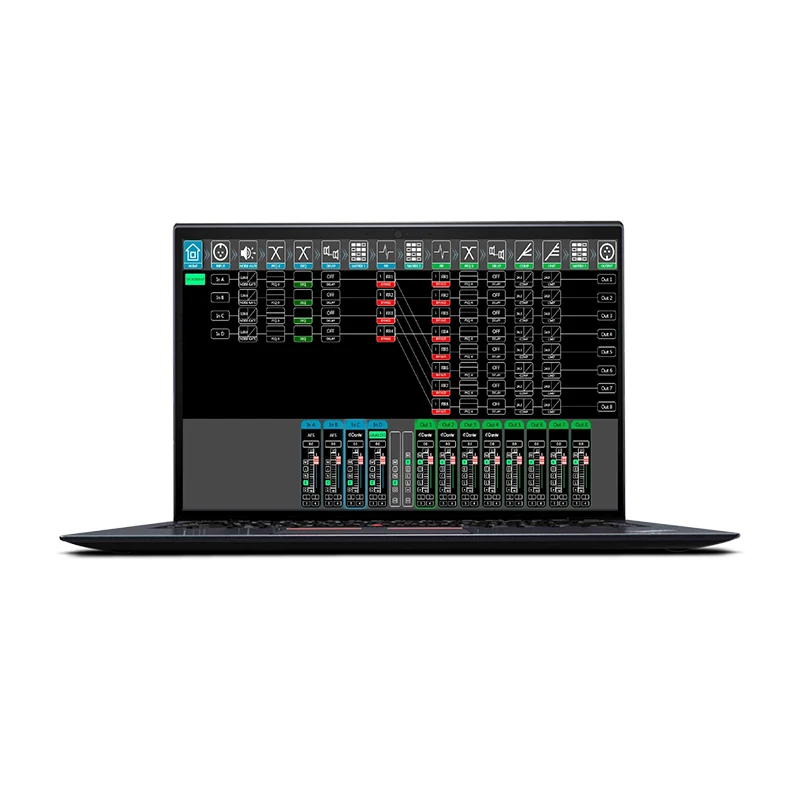

96K 4in 8out Speaker Management Processor, model DSP48, is designed and manufactured with high-performance DSP processor, dynamic equalizer, FIR automatic linear phase, etc., and supports a variety of input signals, including analog, AES3, and Dante network audio. It can be set up using PC software, and the built-in standard FIR designer provides automatic linear amplitude and phase functions, making parameter setting very convenient.

96K 4in 8out Speaker Management Processor is equipped with RJ45, USB and RS232 interfaces, and you can control multiple devices through PC software. Among them, the RS232 interface supports third-party system control devices.

Product Features:

96K 4in 8out Speaker Management Processor has 4 analog inputs, 8 analog outputs, and optional 4-channel Dante network audio. The product has high-performance DSP processing and 96k24bit sampling rate. Support Butterworth\Bessel\Linkwitz-Riley high-pass filter and low-pass filter. Support low-pass low-pass filter (LSLV) and high-pass high-pass filter (HSLV). Support all-pass filter, band-pass filter, band-stop filter, phase filter, notch filter, three types of high-pass and low-pass filters.

96K 4in 8out Speaker Management Processor has a standard FIR automatic linear phase function designer. DSP48 supports preset archiving and locking, hiding setting parameters. Control interfaces include USB or TCP/IP, equipped with RS232 central control interface. In addition to these high-performance designs, we have also designed the product beautifully, with beautiful Windows 7/8/10/11 graphical user interface and colorful LED indicators, which are not only practical but also beautiful. Overall, this processor has high-resolution, wide dynamic audio performance, suitable for high-end sound systems such as stages and bars.

About the input: Each input supports AES3 signal switching. The input is equipped with 15-band parametric equalization, 3-band dynamic equalization, and 4 x 512Taps 48k FIR linear phase equalization.

About the output: equipped with 10-band parametric equalization, 4 x 512Taps 48k FIR linear phase equalization.

Product Parameters:

Product Application:

1. Live Performance Venues

Our 96K 4in 8out Speaker Management Processor can be used for both indoor and outdoor performances. Theaters, opera houses and other venues can use the processor to precisely control audio signals, so that both performers and audiences can get a better performance and listening experience. In large outdoor performances such as concerts and music festivals, the DSP48 series products can manage and optimize the audio output of multiple speakers, making the performance sound clearer and more balanced.

2. Fixed Installation Sound System

Conference centers, educational venues, churches and other places will install speakers. The 96K 4in 8out Speaker Management Processor makes the sound in these places clearer, facilitating communication and amplification.

3. Broadcast and Recording Studios

This processor is highly needed by audio engineers to mix and process audio signals for radio and television broadcasts, or for mixing, mastering and track processing.

4. Home Theater and Hi-Fi Systems

In addition to the above-mentioned commercial venues or large public places, families can also use this 96K 4in 8out Speaker Management Processor, which can bring clearer and more dynamic sound effects to home theaters. Or for high-end high-fidelity systems, it provides precise control and optimization.

5. Other Professional Applications

Exhibition venues such as museums, sports competition venues, hotel and resort audio, etc. can also use this processor product. You can choose it in places that require efficient and clear audio experience. The 96K sampling rate, 4 input channels and 8 output channels, and DSP technology not only provide you with convenience, but are also the key to audio processing. The user-friendly interface and compact design will be more convenient, saving time and difficulty for your installation and use.
