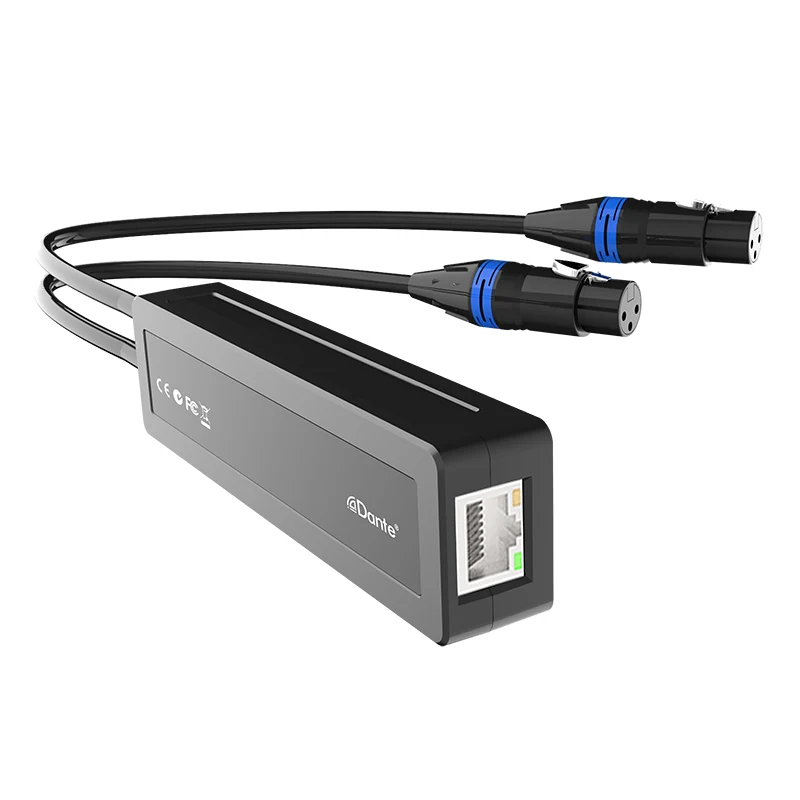

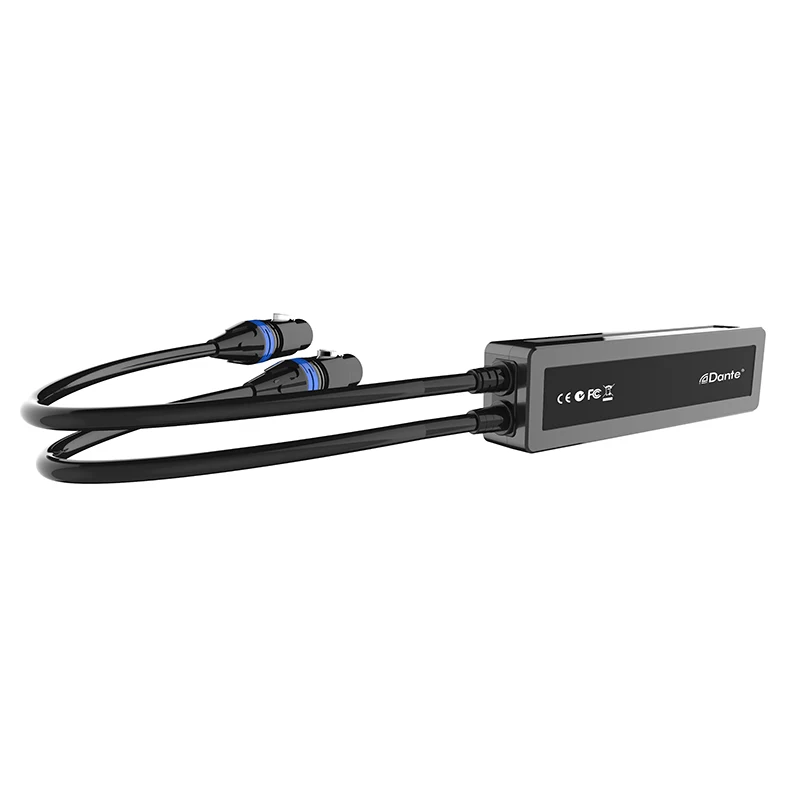

Dante 2 CH Analog Input Adapter Interface

FHBAVTEC is top 3 audio system manufacturer and supplier in China. FHBAVTEC® Dante 2 CH Analog Input Adapter Interface, some country call it AVIO, some customer name it Dante interface,they are all same. FHBAVTEC® Dante 2 CH Analog Input Adapter(DI22) extends audio, control, Ethernet and power with an affordable network cable.

Model:DI22

Send Inquiry PDF DownLoad

Product Description

FHBAVTEC® Dante 2 CH Analog Input Adapter(DI22) Product Introduction:

FHBAVTEC® Dante 2 CH Analog Input Adapter(DI22) is compact, easy to use, and supports hot-plugging, making it easy and free to convert between analog and Dante digital audio signals, and fully supports Dante software to easily expand and configure network and audio routing with just a few mouse clicks.

FHBAVTEC® Dante 2 CH Analog Input Adapter Interface Parameters:

Three-conductor XLR Female Connector	2 pcs
RJ45 Network Port	1pc
Analog Audio Interface	XLR connector
Dante Network Audio Interface	RJ45
Power Consumption	<1W
Maximum Signal Level (balanced)	18dBu
Frequency Response	20-20KHz, ±0.5dB
Impedance	20KΩ (balanced)
Impedance	10KΩ (unbalanced)
Dynamic Range	＞100dB
Signal to Noise Ratio	＞100dB
THD+N	＜0.003%@4dBu,1KHz
Connector	RJ45 and 1XLR-F; RJ45 and 2XLR-F
Sampling Rate	48KHz
Network Transmission	Dante IP Chinese Dante(AES67) RTP Audio
Background Noise	-90dBu
Dimensions (LxWxH)	652mm x 32mm x 22mm
Weight	0.2kg

FHBAVTEC® Dante 2 CH Analog Input Adapter Interface Features:

★1. Two analog audio signal inputs and two Dante network audio signal outputs are supported.

★2. Two XLR male connectors for analog audio signal input.

★3. 1 RJ45 network port connected to the switch for the output Dante network audio signal.

4. Convert the analog audio signal to Dante network audio signal output.

FHBAVTEC® Dante 2 CH Analog Input Adapter(DI22) Applications:

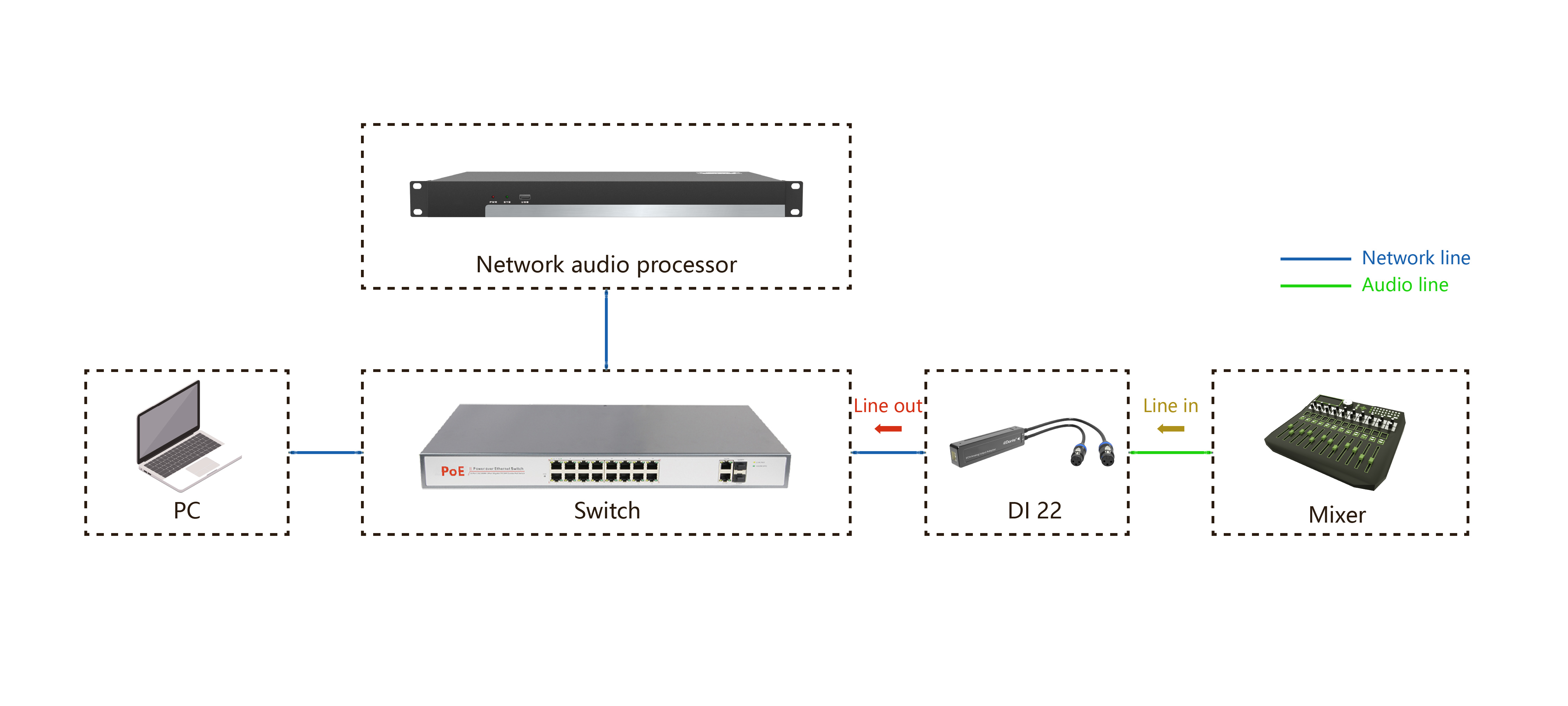

FHBAVTEC® Dante 2 CH Analog Input Adapter(DI22) is suitable for meeting room, exhibition hall, small activities, classroom interaction and other occasions.
