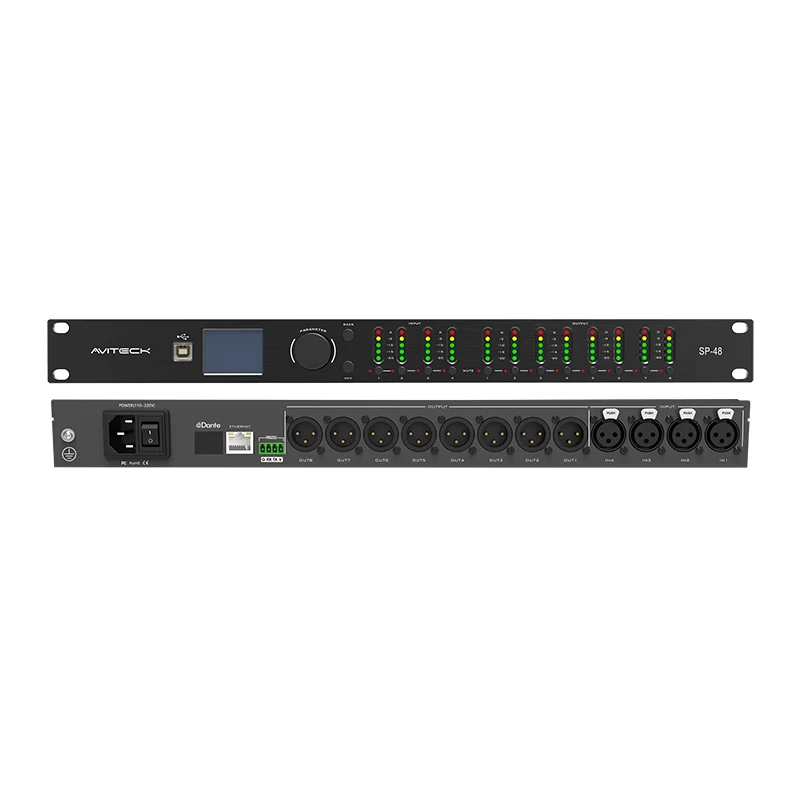

How Does a 4‑Input 8‑Output Speaker Management Processor Elevate Sound System Control?

FHBAVTEC's 4in 8out Speaker Management Processor (Model SP‑48) is a professional audio solution designed for theatres, concert halls, discos, and installed sound systems. With 24‑bit/48kHz processing, 512‑order FIR filters, Dante connectivity options, and an intuitive TFT display, this processor delivers precise speaker control—from gain and delay to crossover and limiting. The SP series supports analog and Dante I/O, flexible routing, and PC software control via USB or RJ45. Backed by FHBAVTEC's strong R&D, CE/ROHS certifications, and global market presence, this processor ensures reliable, high‑quality audio management for demanding professional environments.

Precision Control for Complex Sound Systems

Modern audio installations—whether in a concert hall, house of worship, or corporate auditorium—demand granular control over every loudspeaker. FHBAVTEC's 4in 8out Speaker Management Processor (SP‑48) answers this need with a comprehensive suite of processing tools. It accepts four analog inputs (with optional Dante digital inputs on the SP‑48D variant) and distributes signals across eight analog outputs, each equipped with independent equalisation, delay, crossover, limiting, and gain staging. The built‑in high‑performance DSP chip, combined with 24‑bit/48kHz sampling and 110dB signal‑to‑noise ratio, ensures transparent audio quality with ultra‑low distortion (<0.002% THD+N). This processor is the ideal hub for managing multi‑speaker zones, bi‑amplified or tri‑amplified systems, and large‑scale distributed audio networks.

Core Technical Specifications

Advanced Processing and Feature Set

The SP‑48 is packed with professional‑grade processing capabilities that give sound engineers exceptional flexibility:

• Input Channels – Each of the 4 inputs offers mute, gain adjustment, delay (0‑180ms), 31‑band graphic equaliser, expander, and compressor.

• Output Channels – Each of the 8 outputs includes delay (0‑60ms), crossover with Butterworth/Bessel/Linkwitz‑Riley filters (12/24/36/48 dB/oct slopes), a 512‑order custom FIR filter (with support for third‑party FIR coefficients), 15‑band parametric EQ, gain, and a limiter.

• Dante Integration – The SP‑48D variant features built‑in Dante chips, enabling seamless digital audio networking over standard Ethernet, with remote signal routing via Dante Controller.

• Interactive Control – A TFT LCD display with embedded GUI and rotary encoder allows quick on‑device parameter adjustments; PC software control via USB or RJ45 supports device management, scene saving/recalling, and channel copying/binding.

• Connectivity – Equipped with bidirectional RS232 and standard Ethernet control interfaces, with open protocols for third‑party integration.

Application Scenarios

This processor is ideally suited for:

• Theatres and Performing Arts Venues – Precise speaker management for main, fill, and effects loudspeakers.

• Concert Halls and Discos – High‑output, low‑distortion processing for live music and DJ performances.

• Corporate Meeting Rooms and Conference Centres – Clear speech reinforcement with automatic feedback suppression and zone control.

• Hotels and Multi‑Purpose Spaces – Flexible routing for ballrooms, breakout rooms, and public address systems.

• Educational Institutions – Reliable audio distribution for lecture theatres and auditoriums.

FHBAVTEC's processors are trusted by system integrators and consultants worldwide, with a strong presence in North America, Europe, the Middle East, and Asia.

FHBAVTEC – Innovation and Quality Assurance

Shenzhen FHB Audio Technology Co., Ltd. (FHBAVTEC) was founded in 2018 and has grown into a technology‑ driven enterprise with over 100 employees, a 5,000 m² advanced factory, and a comprehensive product portfolio covering digital audio processors, Dante audio products, conference systems, digital mixers, and Hi‑Fi audio. The company's R&D team works with cutting‑edge equipment—fully automatic printing machines, AOI optical inspection, AP audio testers, electrostatic generators, and vibration testers—to ensure every product meets stringent quality standards. All products are CE and ROHS certified, and the company offers 24/7 online support, after‑sales technical assistance, and OEM/ODM customisation services.

FHBAVTEC's export‑oriented strategy has earned recognition in international markets, with 50% of sales in North America, 20% in Europe, and growing presence in the Middle East and Asia. The company's commitment to innovation, integrity, and customer satisfaction makes it a trusted partner for audio professionals globally.

Frequently Asked Questions

Q: What is the difference between SP‑48 and SP‑48D?

A: SP‑48 has 4 analog inputs and 8 analog outputs. SP‑48D adds 4 Dante digital inputs (via Ethernet) while retaining the 8 analog outputs, enabling integration with Dante audio networks.

Q: Can I control the processor remotely?

A: Yes. You can connect via USB or RJ45 to use the PC control software, or use Dante Controller for network‑based routing. The processor also has RS232 and Ethernet control ports for third‑party integration.

Q: Does it support FIR filtering?

A: Absolutely. The SP series includes a 512‑order custom FIR filter per output channel, and you can import FIR coefficients generated by third‑party software (e.g., Smaart, OpenDRC).

Q: What comes in the package?

A: The package includes the device, power cord, USB software cable, quick guide, and certificate of quality.

Q: Can I use it for a bi‑amplified speaker system?

A: Yes. The crossover section with selectable slopes and filter types makes it ideal for bi‑amp, tri‑amp, or multi‑way speaker configurations.

Q: Do you provide OEM/ODM services for this processor?

A: Yes. FHBAVTEC has extensive experience in OEM/ODM, and we can customise hardware, software, and branding according to your requirements.

Conclusion

In short, the FHBAVTEC 4in 8out Speaker Management Processor delivers unparalleled control, flexibility, and audio fidelity for professional sound systems. Its combination of analog and Dante I/O, advanced FIR filtering, intuitive control interfaces, and robust build quality makes it a versatile cornerstone for any installed or live sound application. To learn more about how this processor can enhance your next project, or to request a demo unit and customisation options, reach out to our sales team today—we're ready to provide expert guidance and tailored solutions for your audio needs.
