2CH Dante Audio Converter

With extensive expertise in manufacturing 2-channel Dante Audio Boxes, Shenzhen FHB Audio Technology offers a diverse selection of high-quality Dante audio solutions. Our premium 2CH Dante Audio Boxes are designed to suit a variety of applications. For inquiries or assistance, feel free to contact our online support team for prompt service. Beyond the products listed, we also provide customized 2CH Dante Audio Box solutions tailored to your specific requirements. Let us help you create a unique audio solution that meets your exact needs

Model:DB22i

Send Inquiry

Product Description

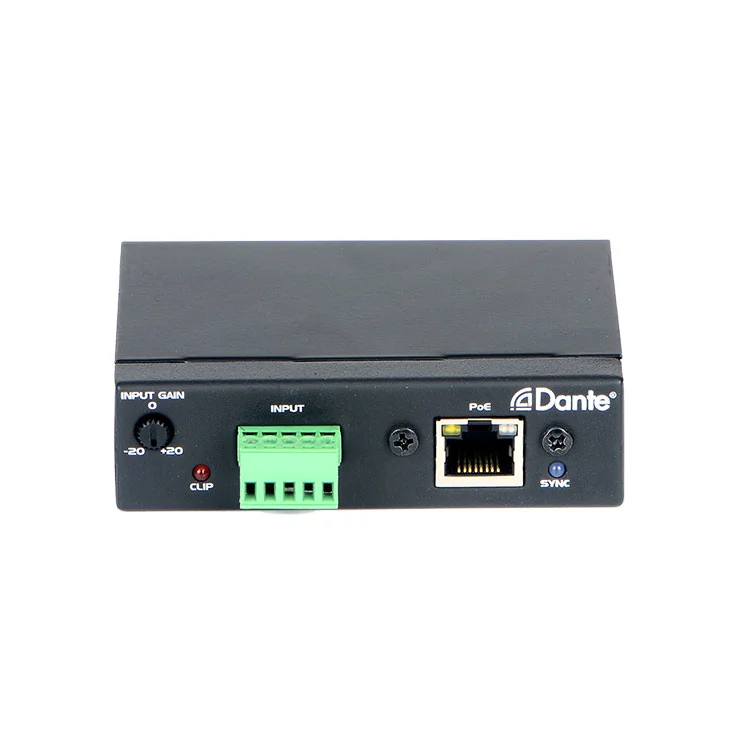

The DB22i Dante Audio Box delivers two-channel audio to a Dante network via Euroblock terminal inputs. Simply connect the RJ-45 port to an Ethernet switch using a Cat5 cable, then use Dante Controller to route ultra-low-latency signals to other devices on the same Dante network.

Main Features:

• Dante Network Interface – Seamless digital audio transmission over IP

• Front-Panel Euroblock Inputs – Converts analog line signals to Dante with adjustable input gain

• High-Resolution A/D Conversion – Supports sample rates from 44.1 kHz to 96 kHz

• Power over Ethernet (PoE) – Simplified single-cable connectivity

• Premium Audio Quality – Clear, low-noise signal processing

• Dante Controller Compatible – Flexible routing and network management

Product Specification

LINE Input	5P Phoenix Type, 3.5mm Pitch (Balanced/Unbalanced)
Input Impedance	15K
Input Level Sensitivity	-10 dBu nominal
Input Level Sensitivity	+10 dBu Maximum
Frequency Response	20Hz to 20KHz (+/- 2dB)
THD+N	<0.06 % @ 1KHz
S/N	95dB @ 1KHz (A Weighted)
Dynamic Range	100dB (-60dBFS A Weighted)
Dante channel	Dante channel
Transmitters/Receivers	2/2
Transmission rate	100 Mbps
Resolution	16/24/32 Bit
Sampling rate	44.1 kHz, 48 kHz, 88.2 KHz, 96 KHz.
Dante interface	RJ-45 Jack
Power supply	PoE, 52V 36 mA
Power Consumption	1.9W
Dimensions	92.5mm(W) × 25.2mm(H) × 68.2mm(D)
Weight	200 g

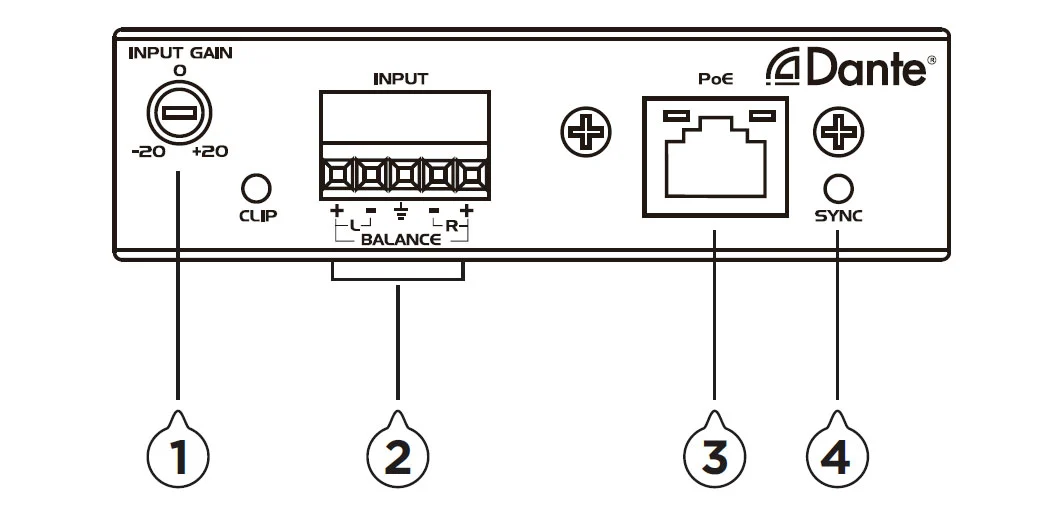

Product Operation

2ch Dante Audio Converter

1. Line Volume: Gain control for output level.

2. Euro Terminal input: Receive the audio signal to Dante network.

3. RJ-45 port: Using Cat5 cable to connect to Dante network.

Note: The Ethernet switch needs to have PoE power supply.

4. SYNC LED: Indicates the status of Dante network.

Product Application:

The 2CH Dante Audio Converter is suitable for professional audio networking in various scenarios, including:

• Live Sound & Events – Integrate analog audio sources (mixers, mics, instruments) into a Dante network for low-latency digital distribution.

• Broadcast & Recording Studios – Digitize analog signals and transmit them over IP for seamless routing and recording.

• Corporate AV & Conference Rooms – Connect legacy audio equipment (speakers, amplifiers) to a Dante-enabled system for centralized control.

• House of Worship & Performance Venues – Extend audio signals over long distances without quality loss using PoE-powered Dante networking.

• Installation & Fixed Systems – Simplify cabling in theaters, museums, and educational facilities by replacing analog wiring with a scalable IP-based solution
