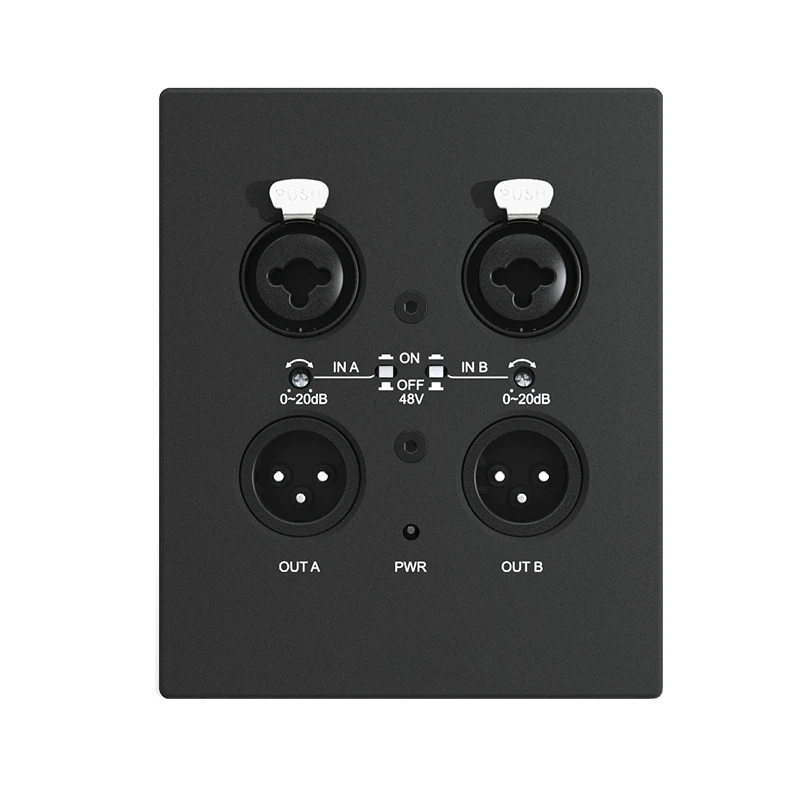

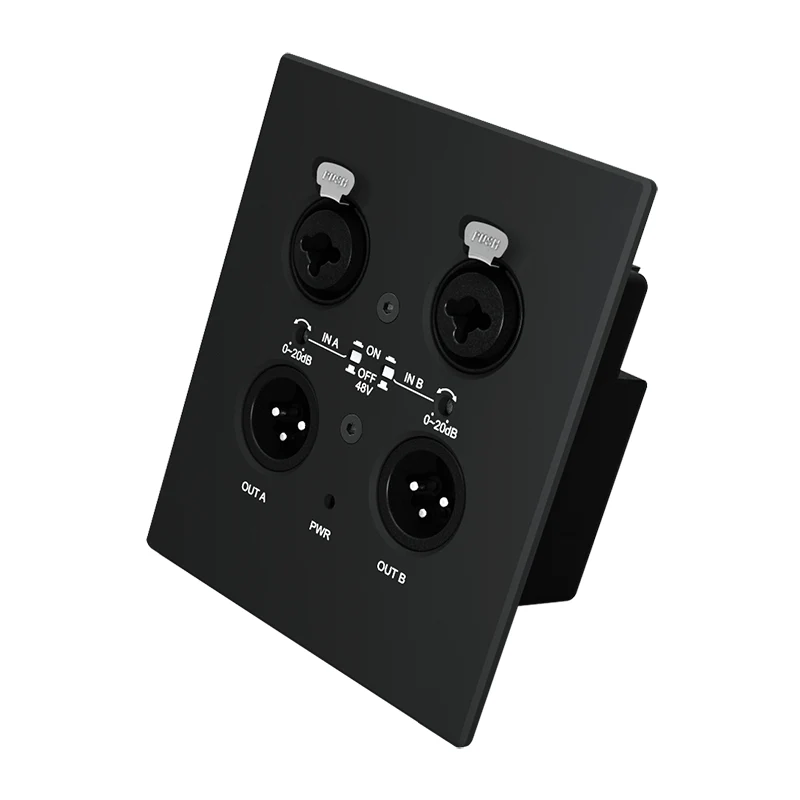

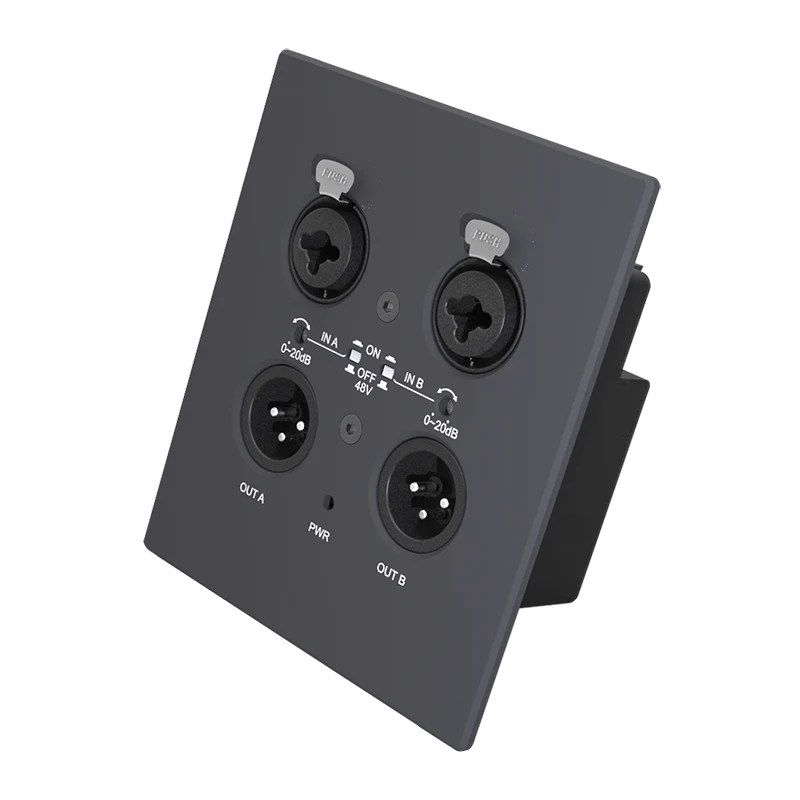

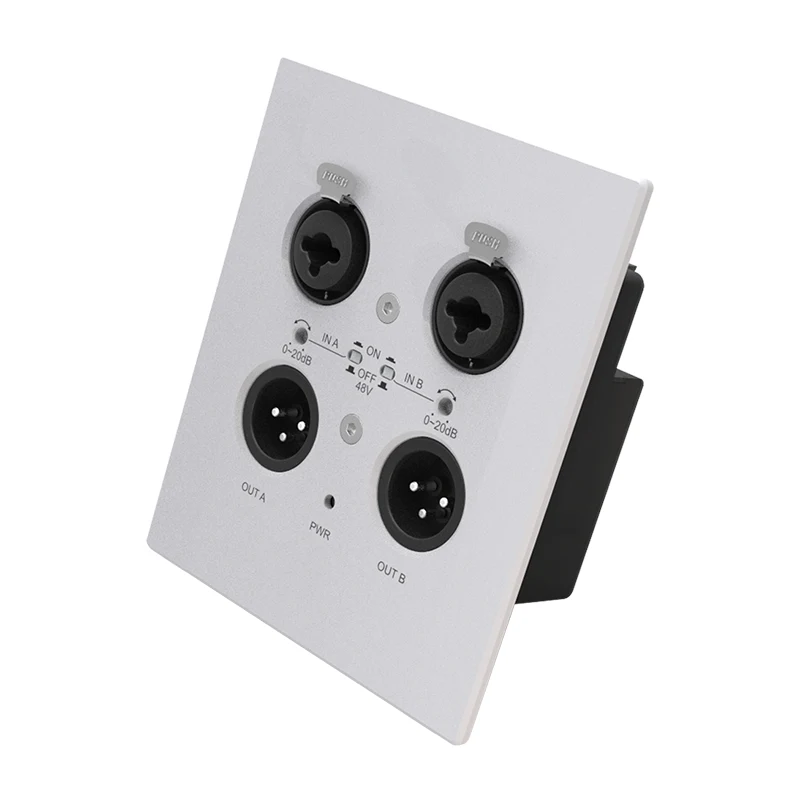

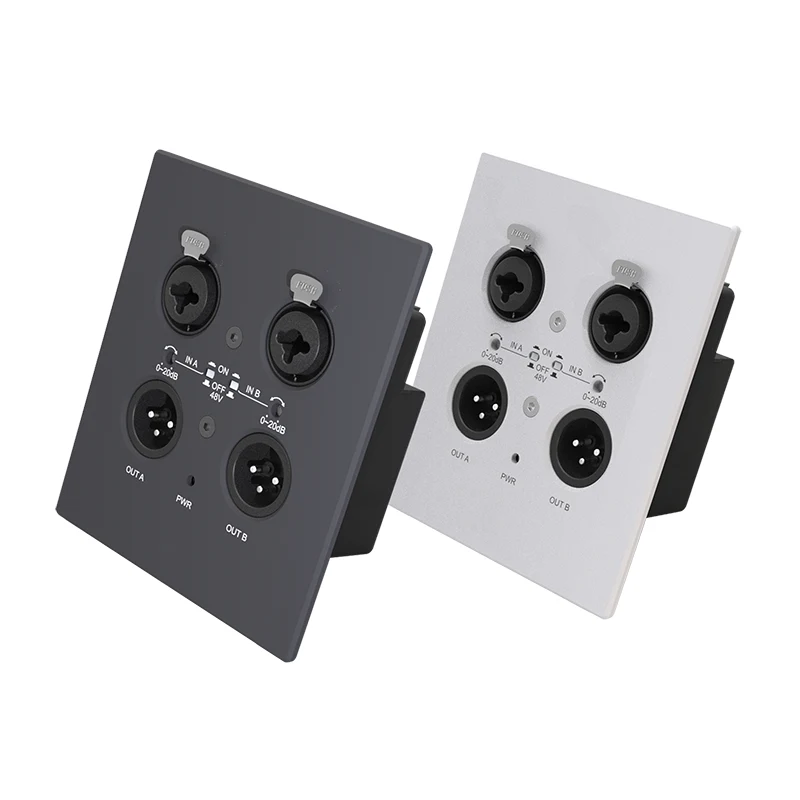

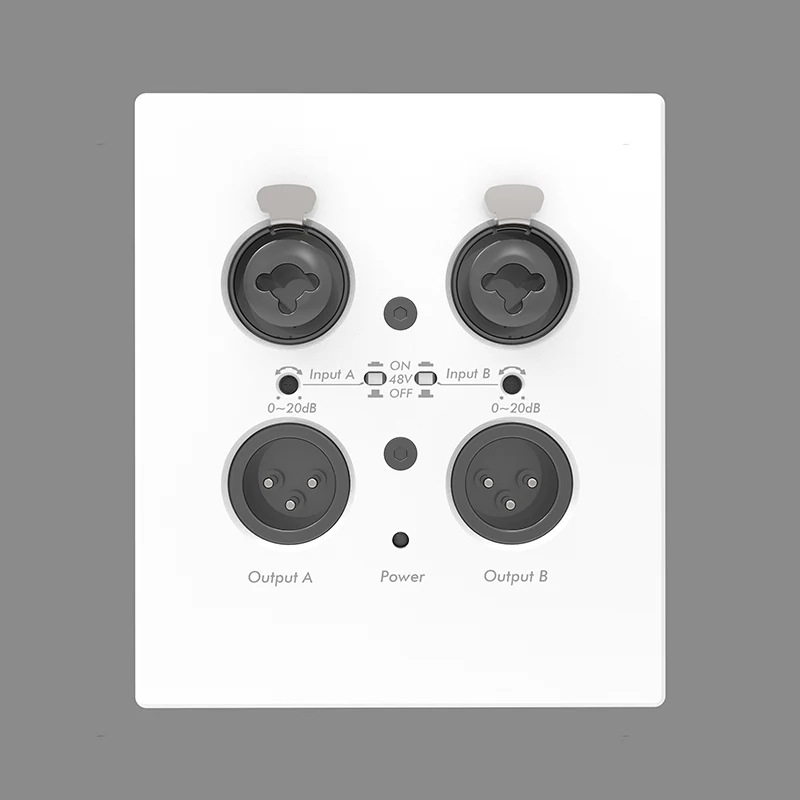

Dante 2 CH Wall Plate Network Audio Interface

FHBAVTEC is one of China's top three pro audio factories. FHBAVTEC® Dante 2 ch wall plate network audio interface (DP22) is one of the Dante audio interfaces. FHBAVTEC® Dante 2 ch wall plate network audio interface (DP22) can OEM for customer, production volume for one model will be 5000pcs per day. Leadtime is 15days.

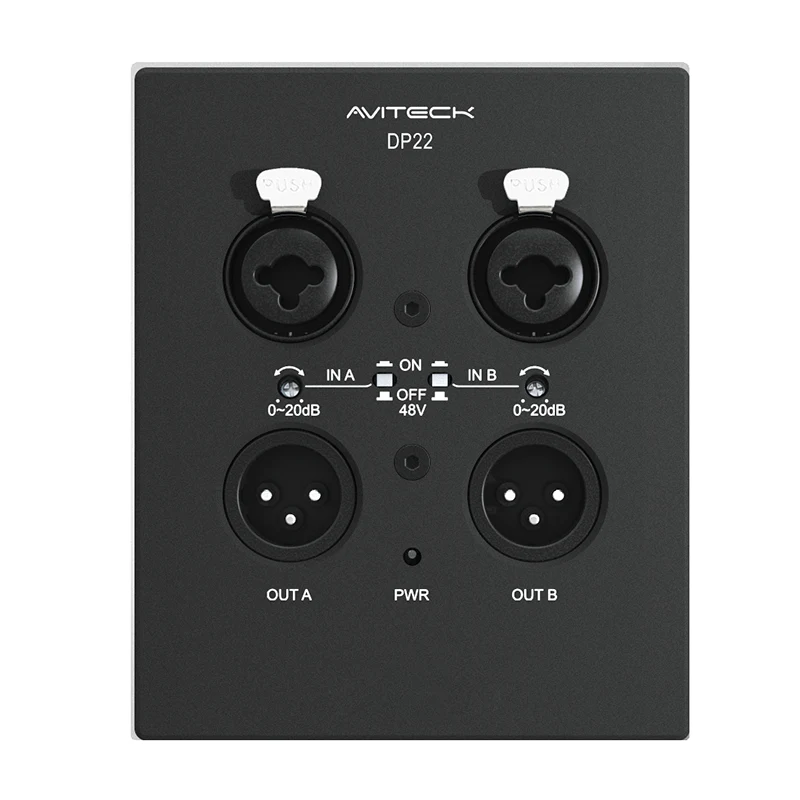

Model:DP22

Send Inquiry PDF DownLoad

Product Description

FHBAVTEC® Dante 2 ch wall plate network audio interface (DP22) Product Introduction:

FHBAVTEC® Dante 2 ch wall plate network audio interface (DP22) has a built-in Dante module for analog to Dante digital signal transfer and a dual channel input phantom power switch. Another great feature is that it can be PoE powered.

FHBAVTEC® Dante 2 ch wall plate network audio interface (DP22) Product Parameters:

Sampling Rate	48KHz
Phantom Power	48V
Frequency Response	20-20K Hz，±0.5dB
THD+N	≦0.005% @4dBu
Input Impedance (Balanced)	20kΩ
Output Impedance (Balanced)	100Ω
Channel Isolation	100dB @1k Hz
Common Mode Rejection	80dB @80 Hz
Maximum Line Input	20dBu
Maximum Line Output	11dBu
Background Noise	-90dBu
Operating Power Supply	PoE Power Supply

FHBAVTEC® Dante 2 ch wall plate network audio interface (DP22) Product Features:

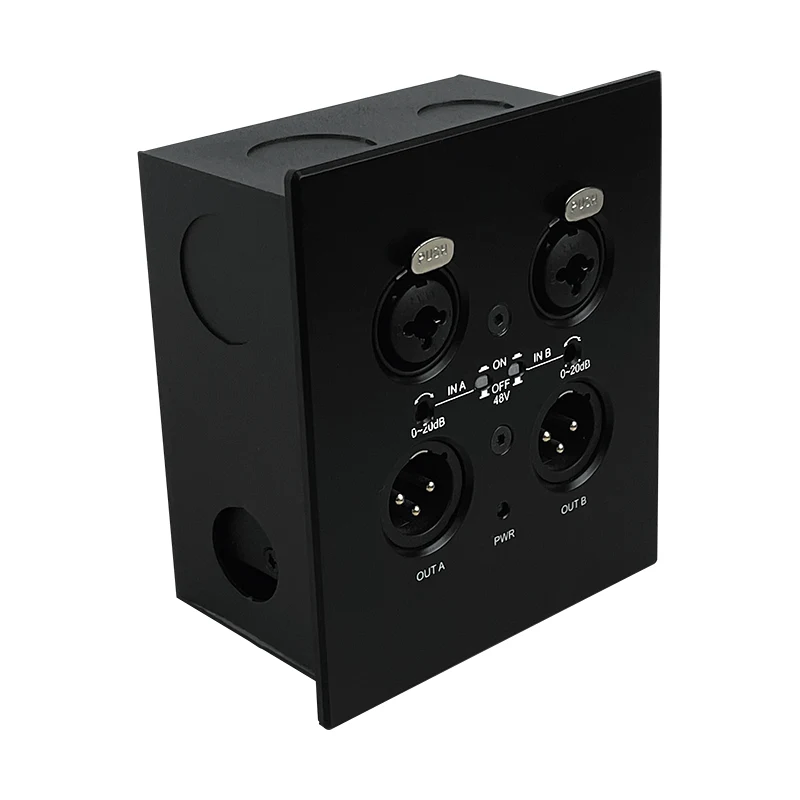

1. Built-in DANTE module, analog signal to Dante digital signal for transfer.

2. Dual-channel input phantom power switch.

3. Dual-channel input gain adjustment.

4. Dual-channel two-in-one Canon input interface.

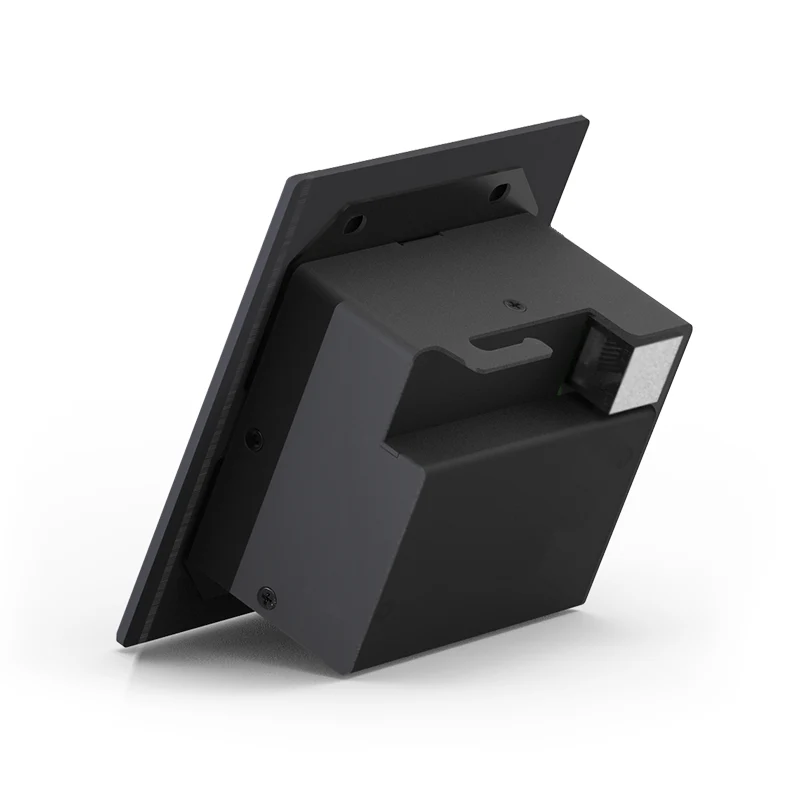

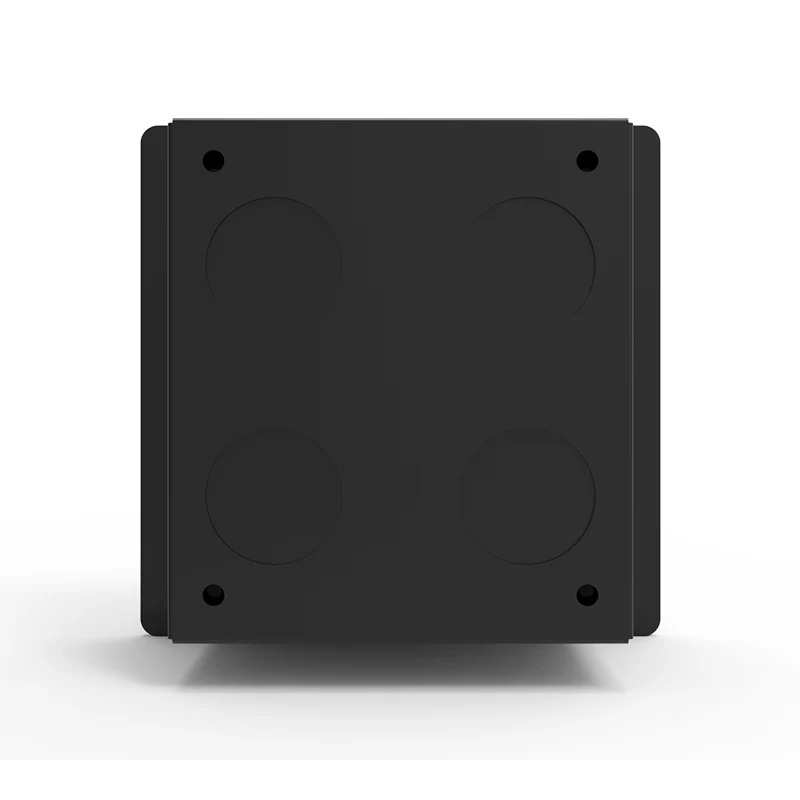

5. Standard 120 type pre-built box installation.

FHBAVTEC® Dante 2 ch wall plate network audio interface (DP22) Applications:

FHBAVTEC® Dante 2 ch wall plate network audio interface (DP22) is suitable for use in conference rooms, multi-purpose halls, theatres, dissertations, convention centers, with pre-concealed input and output interfaces. etc.
