Dante Interface With Mic Line 2 Inputs x 2 Outputs

The DWP22X is a compact Dante interface that converts two analog inputs (mic/line) to Dante and two Dante channels to balanced XLR outputs. Each input features adjustable gain (-20dB to +20dB), switchable 48V phantom power, and signal/clip LEDs. With 24-bit high-resolution conversion, it ensures pristine audio quality. The unit supports both PoE and 24V DC power, with front-panel LEDs for power and network sync status.

Why choose our product?

1. Company Innovative

FHB Audio is driven by innovation. We are continuously developing new technologies that provide time saving methods that benefit you and our dealer network. Our innovative solutions focus on everyday use cases and how our products can cut down installation times, reduce maintenance requirements, increase productivity, and provide you long-lasting reliability.

2. Wide & Deep Products Line

We provide over 200 audio & Video products, as well as a series of Dante products, such as Dante signal processor, Dante interface machine, Dante Bluetooth panel, Dante microphone, and Dante speaker etc…

Our industry-leading support team makes it easy for you to choose the right product and provide the right system solutions.

3. Professional & Fast Service

24 hours online services to provide suggestions and solutions for customer.

After-Sales Technical Support /Product Maintenance

Wiring/Installation/Debugging Instruction

4. OEM/ODM SOLUTIONS

Professional System Designers to assist in product selection and system design to meet your specific needs.

Main Features:

The DWP22X Provides Dante Interface for Two Inputs / Outputs

• With Two Standard XLR MIC or LINE Audio Channels Convert to Dante Network

• MIC/LINE selectable on Each Input

• Adjustable MIC/LIne Gain from -20 dB to +20dB for Each Input Channel

• Switchable 48V Phantom Power On Each Input for Condenser Microphone

• Each Audio Input Signal/Clip LED on Front Panel

• Two XLR Balanced Audio Output Line Level from Dante Network

• Two Output Channels on Rear Panel (corresponding to two XLR outputs)

• High Resolution 24 Bit Converts Analog to Digital and Digital to Analog

• LEDs Indicate the Status for Power and Network Sync on Front Panel

• Powered by External 24VDC Power Supply or PoE

• Normal Operation with PoE Enable Network Switch

Product Specification

Product Application

The 2CH Dante Interface 2 Mic/Line Inputs x 2 Outputs interface panel is perfect for professional audio applications, such as conference rooms, live sound setups, broadcast studios, and installed AV systems, where reliable Dante-to-analog and analog-to-Dante conversion is required in a compact, rack-free form factor. Its wall-mounted design allows for clean and efficient integration into various environments while maintaining high-quality audio performance.

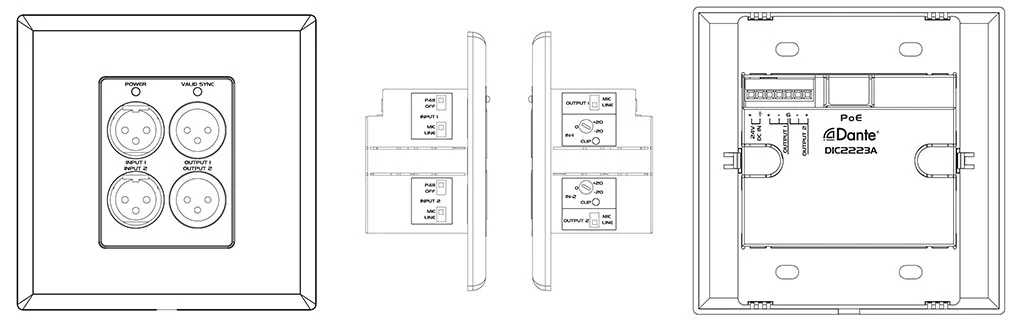

Product Operation

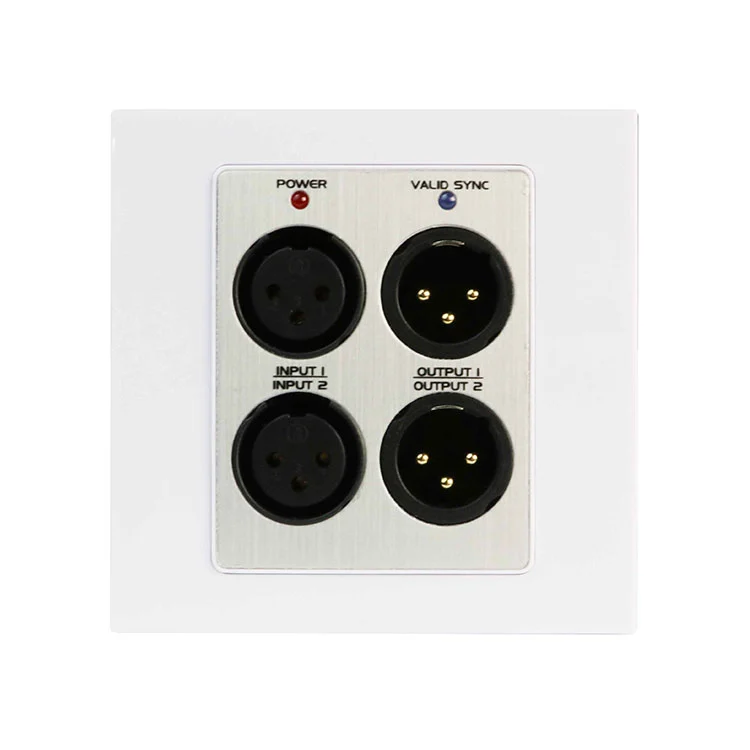

1. Two XLR inputs, accept MIC or Line audio signal.

2. Two XLR outputs, selectable for MIC or Line audio signal.

3. Power LED indicator.

4. SYNC LED indicates the status of Dante network.

5. Input Selector

Line: Accepts Balanced or Unbalanced Line source.

MIC: Accepts the signal of Dynamic or Condenser microphone.

48V: Provides 48V Phantom power when connecting ondenser microphone.

6. Output Selector:t the outputs to Line or MIC with different Gain range.

7. Input Gain Controls: Adjust the Gain level of input signal on ach input channel.

8. Signal CLIP LED on each input channel

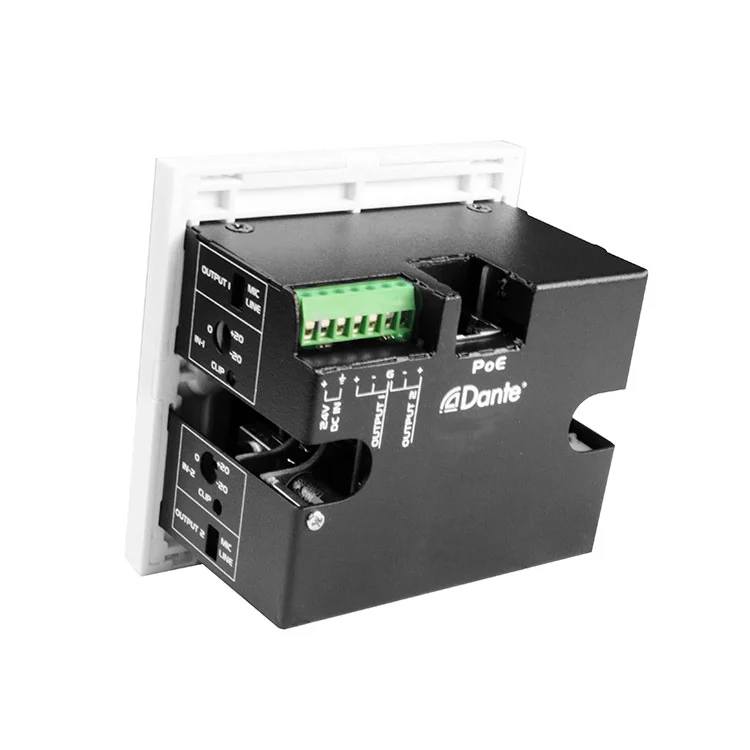

9. Euro Terminal Outputs:

Converts two Dante channels to analogue Line outputs. These two outputs re parallel to the outputs n front panel.

10.RJ45 port: Using Cat5 able to connect to Dante network.

Note: When using PoE enabled network switch, DWP22X could be powered and operation from PoE.

11. Power: Connect DC 24V to 2P terminal block or DC input jack. Note: If DC 24V and PoE are both present to DWP22X, the unit will operate from DC 24V. And when DC 24V removed, the power will switch over to PoE power automatically.
