4CH Dante Audio Interface with Mic and Line Input

Dante interface panel that converts two Dante network channels to analog audio outputs and two analog audio inputs to Dante signals. Available in two versions—DWP22L-US (compatible with US double-gang back boxes) and DWP22L-EU (designed for European back boxes)—this panel ensures seamless integration into your audio setup. Simply connect via Cat5 cable to an Ethernet switch and use Dante Controller to route low-latency audio signals across the network.

Main Features:

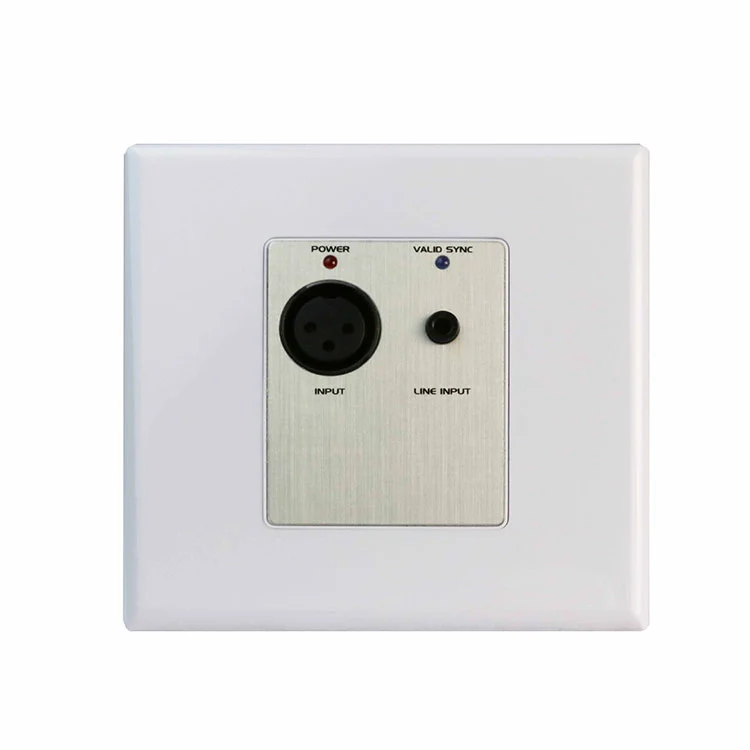

The DWP22L combines professional analog I/O with Dante networking in a compact wall-mount design. Its front panel features:

• One XLR input (switchable between mic/line with +48V phantom power)

• One mini-jack input (summed to mono)

• Adjustable gain per channel (-20dB to +20dB)

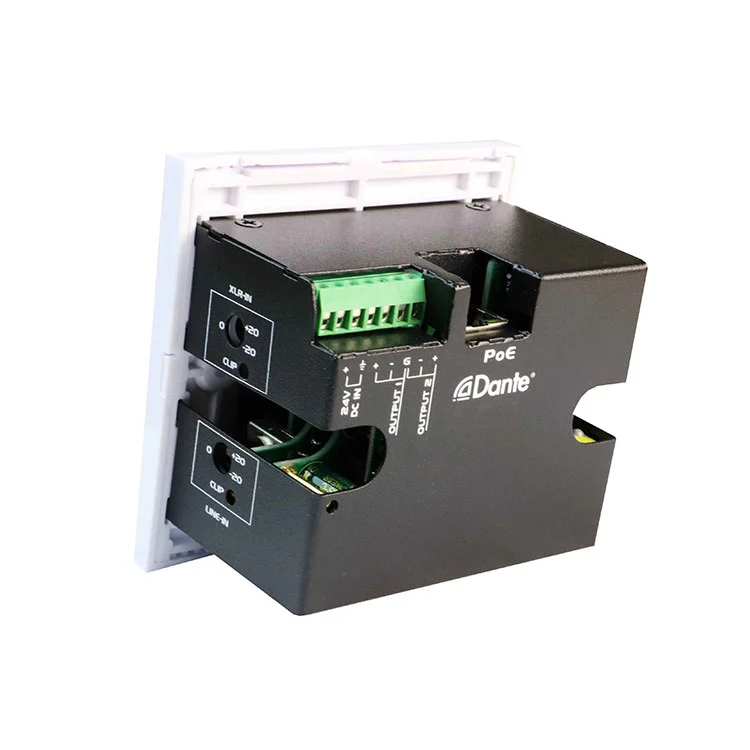

On the rear, two Dante outputs deliver pristine 24-bit audio to the network, while side-panel LEDs monitor signal/clip status, power, and sync. Powered via PoE or 24VDC, it includes a high-quality mic preamp for low-noise performance—ideal for studios, conferencing, and live sound.

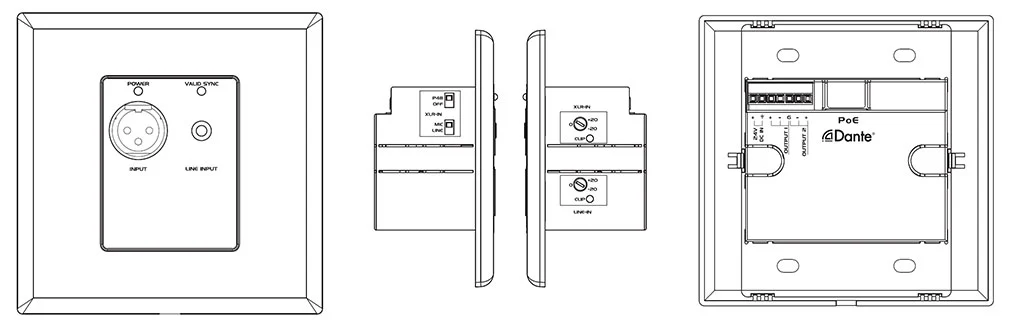

Product Operation

1. XLR input, accept MIC or Line audio signal.

2. 3.5mm Mini jack input, accepts Line audio signal.

3. Power LED indicator.

4. SYNC LED indicates the status of Dante network

5. XLR Input Selector

Line: Accepts Balanced or Unbalanced Line source.

MIC: Accepts the signal of Dynamic or Condenser microphone.

P48V: Provides 48V Phantom power when connecting Condenser microphone.

6. Input Gain Control: Adjust the Gain level of input signal on each input channel.

7. Signal CLIP LED on each input channel.

8. Euro Terminal Outputs: Converts two Dante channels to analogue Line outputs.

9. RJ45 port: Using Cat5 cable to connect to Dante network.

Note: When using PoE enabled network switch, DWP22L could be powered and operation from PoE.

10. Power: Connect DC 24V to 2P terminal block or DC input jack.

Note: If DC 24V and PoE are both present to DWP22L, the unit will operate from DC 24V. And when DC 24V removed, the power will switch over to PoE power automatically.

Product Specification

Why choose our product?

1. Company Innovative

FHB Audio is driven by innovation. We are continuously developing new technologies that provide time saving methods that benefit you and our dealer network. Our innovative solutions focus on everyday use cases and how our products can cut down installation times, reduce maintenance requirements, increase productivity, and provide you long-lasting reliability.

1. Wide & Deep Products Line

We provide over 200 audio & Video products, as well as a series of Dante products, such as Dante signal processor, Dante interface machine, Dante Bluetooth panel, Dante microphone, and Dante speaker etc…

Our industry-leading support team makes it easy for you to choose the right product and provide the right system solutions.

2. Professional & Fast Service

24 hours online services to provide suggestions and solutions for customer.

After-Sales Technical Support /Product Maintenance

Wiring/Installation/Debugging Instruction

3. OEM/ODM SOLUTIONS

Professional System Designers to assist in product selection and system design to meet your specific needs.

Product Application

The 2CH Dante Interface 2 Mic/Line Inputs x 2 Outputs interface panel is perfect for professional audio applications, such as conference rooms, live sound setups, broadcast studios, and installed AV systems, where reliable Dante-to-analog and analog-to-Dante conversion is required in a compact, rack-free form factor. Its wall-mounted design allows for clean and efficient integration into various environments while maintaining high-quality audio performance.
