4 Mic and Line Inputs Dante Interface

Shenzhen FHB Audio Technology Co.,Ltd is China manufacturer & supplier who mainly produces Dante DSP, Dante Interface, Sound system with many years of experience. Hope to build business relationship with you.

Model:DB0404

Send Inquiry

Product Description

The DB0404 is a high-performance Dante-to-analog audio interface, offering four-channel conversion in both directions—Dante to analog outputs and analog inputs to Dante.

Connect the RJ45 port to an Ethernet switch using a standard Cat5 cable, then use Dante Controller to route signals with minimal delay across your Dante network. This ensures seamless integration with other Dante-compatible devices.

Main Features:

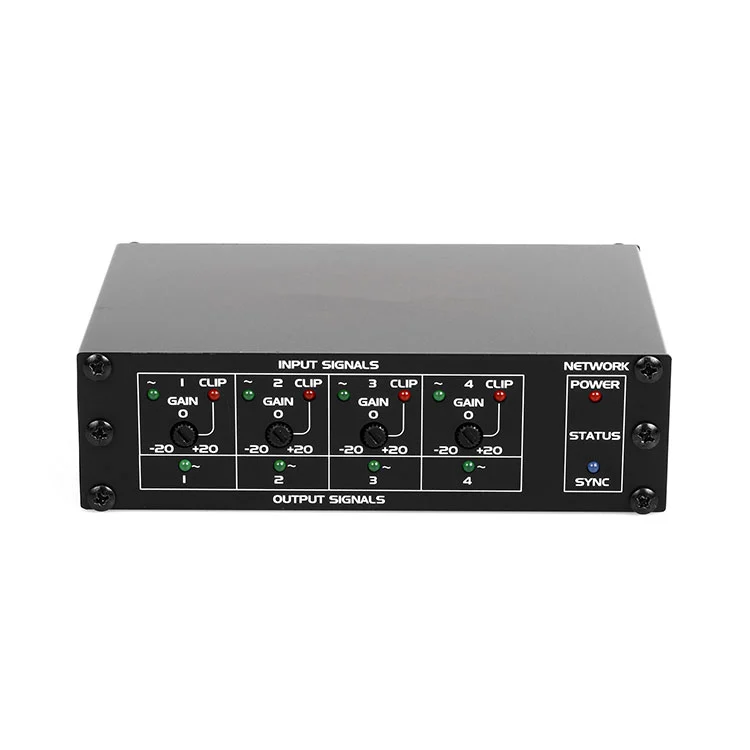

The DB0404 is a compact, high-quality Dante interface offering four analog inputs (switchable between MIC/LINE with gain control and phantom power) and four balanced analog outputs—all fully routable via Dante.

✔ 24-bit A/D & D/A conversion for pristine audio

✔ Clip/signal LEDs per channel for real-time monitoring

✔ 48V phantom power on all mic inputs

✔ PoE or 24VDC power options

✔ Dante network sync & power status indicators

It's Perfect for studios, live sound, and broadcast, it ensures seamless integration into any Dante ecosystem.

Product Specification

Dante Network to Line Level Outputs
Outputs	5P Detachable Terminal block, Balanced/Unbalanced
Output Level	-10 dBu nominal
Output Level	+10 dBu Maximum
Output Voltage:	+20dBu (@ 0dB output gain)
Output Impedance	150 _ balanced; 75 _ unbalanced
Frequency Response	20 Hz to 20 kHz (± 0.5 dB)
THD+N	< 0.1%
Noise	<-75dB
Crosstal	< 85 dB (20 Hz to 20 kHz)
Mic/Line Inputs to Dante Network
Mic Inputs
Inputs	7 Pin Euro Terminal, Balanced
Gain	Condenser microphone:40 dB
Dynamic microphone	60 dB
Input Level for +4 dBu	-36 dBu (Condenser)
	-56 dBu (Dynamic)
	-36 dBu(Maximum)
Input Impedance	40 __
Phantom Power	48 V
Frequency Response	20 Hz to 20 kHz (± 0.5 dB)
THD+N	< 0.1%
Noise below +4 dBu	< -70 dB
CMRR	> 70 dB (50 Hz to 120 Hz)
Crosstalk	< 70 dB (20 Hz to 20 kHz)
Line Inputs
Inputs	7 Pin Euro Terminal, Balanced
Input Level for +4 dBu	+4 dBu (balanced); -10 dBV (unbalanced)
Input Impedance	>40 _
Frequency Response	20 Hz to 20 kHz (± 0.5 dB)
THD+N	< 0.1%
Noise below +4 dBu	< -75 dB
CMRR	> 60 dB (50 Hz to 120 Hz)
Crosstalk	< 75 dB (1 kHz, any line to any mic channel),
Crosstalk	< 70 dB (20 Hz to 20 kHz)
Headroom above +4 dBu	> 18 dB
Dante channel
Transmitters/Receivers	2/2
Transmission rate	100 Mbps
Resolution	16/24/32 Bit
Sampling rate	44.1 kHz, 48 kHz.
Dante interface	RJ45 jack
Power Connections	2 Pin Euro Terminal, Power Jack
Power Requirement	24 Vdc @ 180 mA plus connected phantom loads, or PoE
Dimensions	143mm(W) × 45mm(H) × 93mm(D)
Weight	0.7Kgs

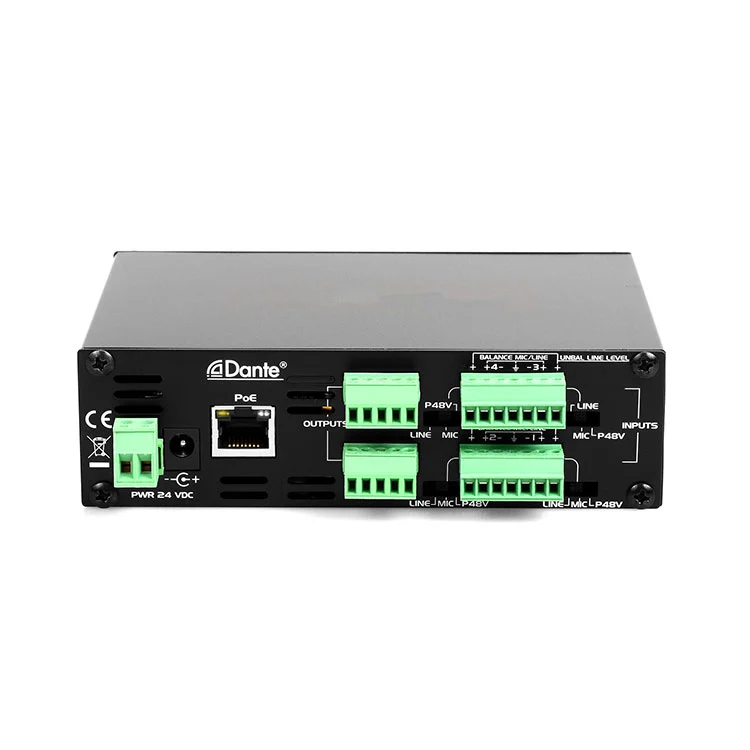

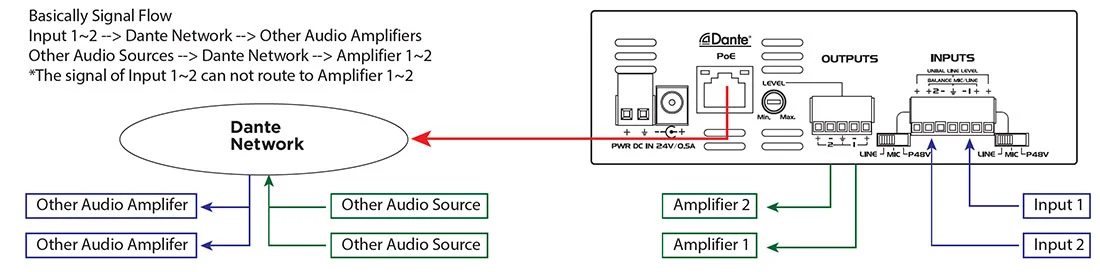

Product Connection

4 Mic And Line Inputs Dante Interface

1. Line Volume: Gain control for output level.

2. Euro Terminal input: Receive the audio signal to Dante network.

3. RJ-45 port: Using Cat5 cable to connect to Dante network.

Note: The Ethernet switch needs to have PoE power supply.

4. SYNC LED: Indicates the status of Dante network.

Product Application

The 4 Mic and Line Inputs Dante Interface is a professional audio interface based on Dante network protocol, supporting 4 microphone/line inputs and 4 outputs. Its core advantage is to transmit high-quality, low-latency audio signals through IP networks, which is suitable for scenarios that require flexible wiring, remote transmission or multi-channel audio integration.It’s is suitable for Live Sound, roadcast/streaming production,Conference system, Educational venues is suitable and so on.
